Micro Matic or DSI, we have the perfect spear for your needs
Fifty years of quality spears
Micro Matic entered the beverage dispense industry half a century ago by engineering high-quality keg spears for a major European brewery. That successful venture led to our getting into other dispense equipment – while we also kept innovating our spear technology.
Today we’ve sold more than 135 million keg spears worldwide. Our customers value the two distinct designs we produce for their unmatched precision, safety features, and hygiene certainty.
Always more than meets the eye

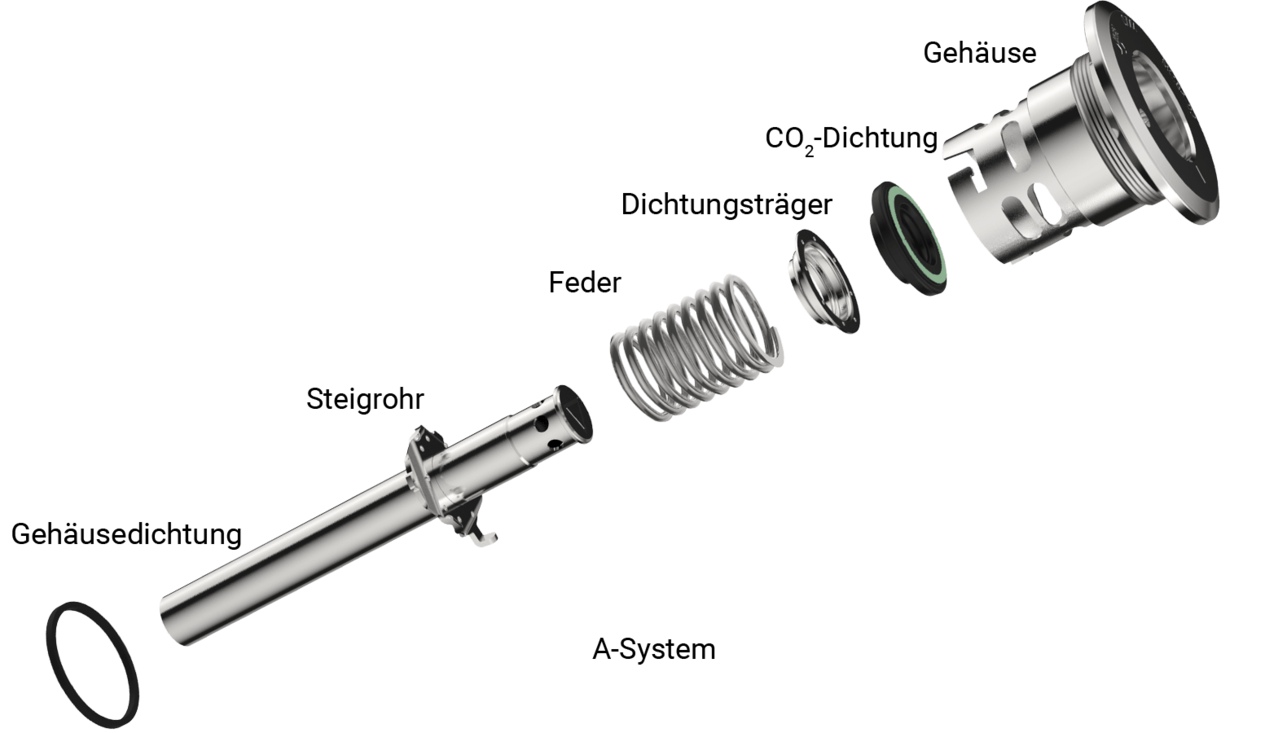

Think keg spears are simple products? The truth is, they are deceptively complex, with the design and engineering of each individual part critical for ensuring safe, hygienic, and reliable operation.
Two great Designs, endless possibilities
Via our Micro Matic and DSI spear designs, we offer valve systems for all common threaded and bayonet necks. All standard neck and coupler interfaces are available, plus the option of customized designs. And we offer different safety technologies based on valve/ spear and neck type.
All Micro Matic and DSI spears meet EU and U.S. food-contact requirements and feature safety technology that protects your employees and customers. Our spears are easy to handle during assembly, disassembly and maintenance.
Micro Matic design
DSI design
A-Type
- Flat spear type
- Optional electropolish and color coding
- Ground distance 9 mm
ACB
A-Type for BS-Neck; Variants for almost all common bayonet necks possible
Standard 2“x14tpi – Fix-safety
“Fixed” safety catch
Standard 2“x14tpi – Safety
“Loose” safety for maximum ease and speed of installation into the keg!

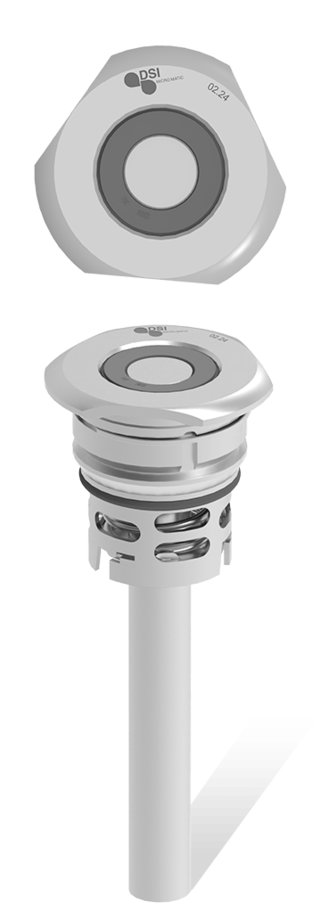

G-Type
- Trilobe spear type
- Optional electropolish and color coding
- Ground distance 9 mm
GR-B
Variants for almost all common bayonet necks possible
Standard 2“x14tpi – Fix-safety
“Fixed” safety catch
Standard 2“x14tpi – Safety
“Loose” safety for maximum ease and speed of installation into the keg!
2 1/8 x 7 UNS – short neck – Safety
For short threaded necks with trapezoidal thread
M-Type
- Combi spear type
- Optional electropolish and color coding
- Ground distance 15 mm
Standard 2“x14tp
Combi system, besides 2“x14tpi also possible with thread Rd52x1/6

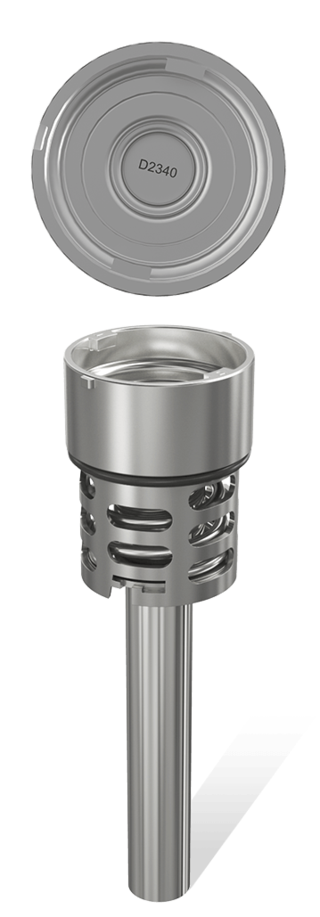

S-Type
- Well spear type
- Optional electropolish
- Ground distance 14 mm
WB
Variants for almost all common bayonet necks possible
Standard 2“x14tpi
Besides 2“x14tpi also possible with thread Rd52x1/6, or short-Neck
WDE
“Europe” spear = S-type valve in US neck

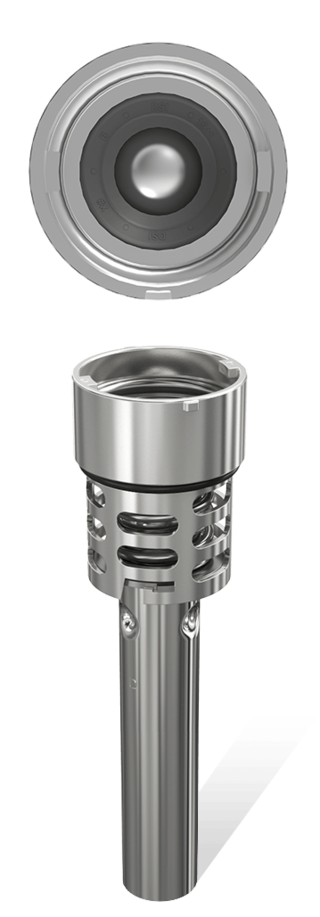

D-Type
- Well spear type
- Optional electropolish and color coding
- Ground distance 14 mm
WBD
D-Type for BS-Neck; Variants for almost all common bayonet necks possible
WDSI
D-Type for 2“x14tpi threaded necks.
Standard Draft
US-Draft for Drop-In US-Neck
WDS (draft safety)
D-Type US-Neck with additional safety latch.

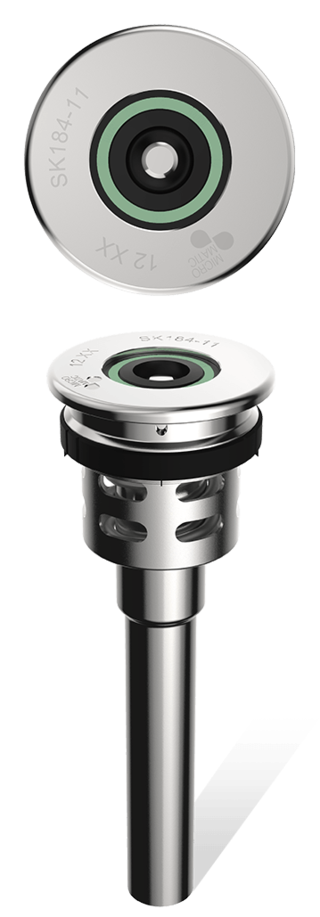

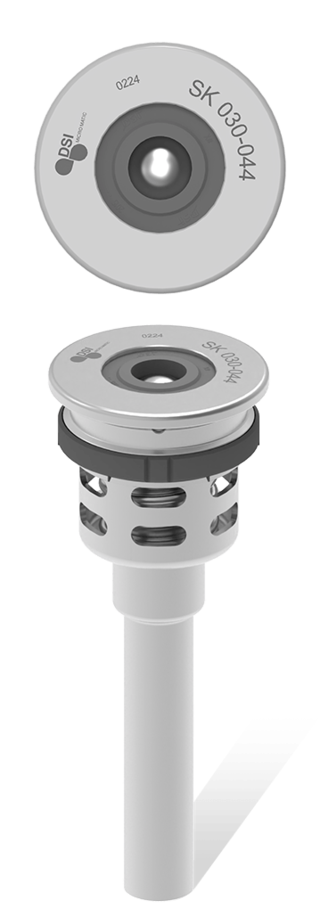

L-Type
- Combi spear type
- Optional electropolish and color coding
NC
Non-Coce Softdrink System; flange 60×4,0 mm, black temper ring
CC
Coca-Cola Softdrink System; flange 56×6,0 mm, red temper ring
PC
Pepsi Softdrink System; flange 58×4,5 mm, blue temper ring

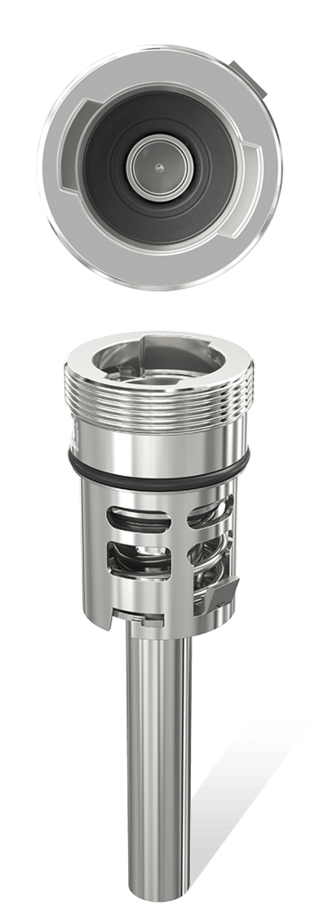

U-Type
- Well spear type
- Optional electropolish
- Ground distance 14 mm
USO
For radial sealing by means of O-ring + washer; for Guinness necks with groove
USI – Standard
2“x14tpi with internal body seal
Neck connections applicable for both Micro Matic and DSI
2" x 14 TPI DIN neck
2" x 14 TPI LH lefthand thread
Rd 52 x 1/6" round thread
Rd 52.8 x 1/6" round thread
Rd 53 x 1/6" round thread
2 1/8" x 7 TPI short neck
2" x 7 TPI short neck
BS neck
SOS neck
2" x 14 TPI DIN neck
2 1/8 x 7 UNS short neck
Rd 52 x 1/6" round thread
Rd 53 x 1/6" round thread
BS neck
2" x 14 TPI short
SOS neck
2" x 14 TPI DIN neck
Rd 52 x 1/6" round thread
BS neck
2" x 14 TPI short
2" x 14 TPI DIN neck
2 1/8 x 7 UNS short neck
Rd 52 x 1/6" round thread
Rd 53 x 1/6" round thread
2" x 14 TPI short
SOS neck
BS neck
US drop-in neck
US drop-in neck
2" x 14 TPI DIN neck
BS neck
SOS neck
SAF-2 neck
2" x 14 TPI DIN-Neck
Softdrink weld-in neck M46 x 1.5
2" x 14 TPI short
The right length of spears
The H3 dimension of the keg is defined from the sealing edge in the neck down to the bottom cup in the keg. This is important for the correct length calculation of the required spear. This is because the correct bottom distance per valve system must be selected in order to be able to realize the strokes that occur and to be able to carry out cleaning, filling and emptying correctly.
| System | Ground distance in mm |
|---|---|
| A/G-type | 9 |
| M-type | 15 |
| S-type | 14 |
| D-type | 14 |
| U-type | 14 |
All about color coding
Invented by Micro Matic, the color coding of keg spears is a maintenance approach that uses a new color each year to enable camera-controlled or mechanical separation of kegs for scheduled maintenance.
By facilitating preventative maintenance, this ensures a greater return on investment and reduces the risk of unplanned maintenance and downtime.
Color-coding of the spears enables camera-controlled or mechanical separation of kegs that are due for routine, scheduled maintenance which Micro Matic recommends at approximately 7-8 year cycles.
Please note that the above screen colors are only indicative.
