FlexiDraft™ UNDERCOUNTER 20

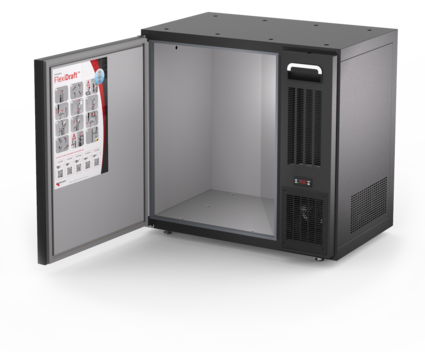

FlexiDraft™ UNDERCOUNTER 20 is a high-quality undercounter fridge developed for FlexiDraft™.
FlexiDraft™ UNDERCOUNTER 20 is an integrated solution that combines all the benefits of the FlexiDraft™ CORE fonts with an accurate and energy efficient fridge.
Our selection of different fridge sizes is suitable for a wide range of common keg combinations and comes with adjustable legs for perfect fitting. The UNDERCOUNTER series comes in professional quality and are designed for a sleek and modern look.
All FlexiDraft™ UNDERCOUNTER fridges includes pre-drilled holes for external CO2 supply and are available with a range of optional accessories including a keg slider system, interior lighting and door locks.
The FlexiDraft™ UNDERCOUNTER is easy to install (Plug & Play) and is sized to the use of the industry standard sized 20, 30 and 50 litre kegs. FlexiDraft™ UNDERCOUNTER 20 can be specified with 1-2 fonts.
Accessories
Integrated door lock
In order to prevent unauthorized access to the fridge, the FlexiDraft™ fridges can optionally be equipped with a door lock.
Interior Lighting
All FlexiDraft™ fridges can optionally be supplied with integrated LED interior lighting.
Keg Slider System
Keg Slider System for easy handling of kegs. The keg slider system supports the below keg sizes and ensures ergonomically correct handling of kegs.
Keg options
SUITABLE KEG TYPES:
20 L Slim
(Ø235 mm)
20 L EURO
(Ø408)
20 L EURO
(Stacked)
30 L DIN
(Ø381)
30 L EURO
(Ø408 mm)
50 L EURO
(Ø408 mm)
50 L DIN
(Ø381)
KEG COmbinations (examples):
Technical specifications
| FlexiDraft™ UNDERCOUNTER 20 | |
|---|---|
| Number of fonts | 1-2 fonts |
| Cooling: | |
| Power of compressor | 507 watt |
| Coolant type | R290 |
| Coolant amount | 50 g |
| Performance: | |
| Ambient temperature max. | 40º C |
| Cooling temperature | 2º- 4º C |
| Electrical: | |
| Main supply/ Run current | 220/240V - 50/60Hz / 2,1A |
| Plug compatibility (see world standards) | Type A, B, C, F, G, H, I, J, K, L, M, N, O |
| Energy consumption (at 24°C ambient temp.) | 2,4 kWh/24h |
| Noise level: | |
| Specification | 48-55 db (A), 0,5 m from the cooler |
| Dimensions of cooler: | |
| Width | Outside: 920 mm Inside: 590 mm |
| Depth | Outside: 610 mm Inside: 510 mm |
| Height | Outside: 870-885 mm Inside: 755 mm |
| Weight | 77 kg |
| Legs | Adjustable height 15-30 mm |
