Smart, hygienic, and leak-tight by design
Engineered for precision, hygiene, and 100% leak-tight performance, our shut-off valves are designed to meet the highest industry standards. Manufactured entirely in stainless steel and built on proven ball valve technology, these valves feature a gap-free, hygienic design that ensures optimal cleanliness and reliability.
Whether you're looking for simple, space-saving solutions or more advanced 3-way configurations, our shut-off valves cover a wide range of needs. From rotatable and angled designs to flexible mounting and connection options, we offer a selection tailored to your operational setup. The valves displayed here represent only a small portion of our complete range. Explore the robust functionality, certified quality, and maintenance-free operation that define our shut-off valves.
Straight shut-off valves
Mainly used as a direct connection to the probe of the coupler, but also available with wall-mounted bracket to place it into the beverage line.
Comes in a hexagon and round design.
Additional connections available upon request.
Internal - x external - thread, fix
Fixed thread connections: internal x external: e.g. available in G5/8, G1/2 o., G3/8 flare.
For connection on coupler probe.
Internal thread x pushfit, fix
Fixed thread connection: internal : e.g. available in G5/8, G1/2. Integrated PushFit for Ø3/8″ hose.
For connection on coupler probe.
2X G3/8 flare, rotatable
Rotatable nut connection : G3/8 flare – internal. Outlet G3/8 flare –outside.
For connection on coupler probe.
Internal - external thread, rotatable stud
Rotatable nut connection: e.g. available in G5/8, G1/2. Outlet available in e.g. G5/8, G1/2, G3/8 flare, Ø3/8 PushFit, etc.
For connection on coupler probe.
Elbow shut-off valves
Direct installation on top of the Coupler to save space and swivel the beer line around.
Comes in a hexagon and round design.
Additional connections available upon request
90o Angled
Rotatable nut connection: e.g. available in G5/8, G1/2. Outlet available e.g. in G5/8, G1/2, G3/8 flare, Ø3/8 PushFit, etc.
For connection on coupler probe, for space-saving outlet to the side and for flexible choice of line direction.
90o Angled tailpibe
Nut connection available in G3/8", 1/2 and 5/8".
Outlet connection available as tailpibe and push in with G3/8", 1/2" and 5/8".
Available in 90° angled and straight designs.
3-way shut-off valves
3-way shut-off valves for switching between two kegs or, for example, the beverage line and cleaning detergent or water.
Are available as manual and electric.
Additional connections available upon request
3-way valve manually
Inlet/outlet available in G5/8, G1/2.
Optionally with wall bracket.

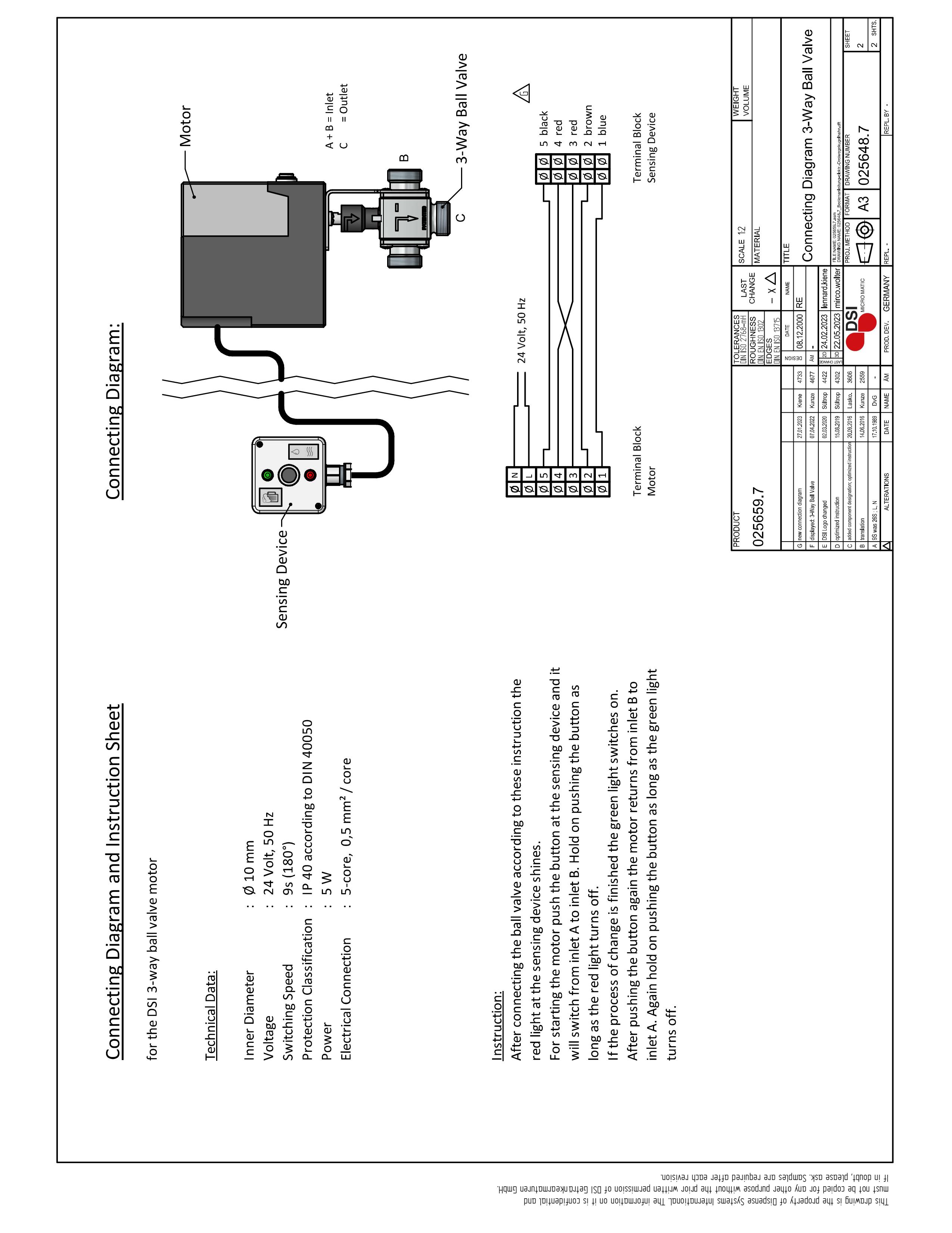

3-way valve electric
Required on site: control line (cable), 5-core = 5×0,5mm² length depending on distance on site. Power supply/source: 24 Volt ~ 50Hz.
With wall bracket and electrical push button.
