Couplers
Micro Matic, DSI and more
Options to meet your every need
Available for all common valve systems, our wide range of dispensing heads/keg couplers combine perfect compatibility with proven quality.
Starting with our basic models, we can assemble individualized ball shut-off valves, hose nozzles, lip valves, threaded or John Guest Push-Fit adapters, decompression valves, and more. We can even add your company logo to the handle, and under-counter versions are available for each system.
Our couplers are all DIN SK-approved and feature hygienic design, robust construction, solid metal handles and easy-to-maintain pistons. As standard, our piston connections come with G1/2 or G5/8 threads, and our gas connection with G1/2 or G5/8 male and G3/8 female threads.
a wide range
of couplers
| Main body connection | Gas connection | Beer connection |
| G3/8 female | Threaded G1/2, G5/8, G3/4, flare G3/8 | Threaded probe (G1/2, G5/8, flare 3/8) |
| G1/2 male | Push-in cartridge Ø5/16", Ø3/8" | Push-in cartridge Ø5/16", Ø3/8", Ø1/2" |
| G5/8 male | Quick connector, male Ø3/8" | Tubing nozzle, different sizes |
| M18 & M2O female | Tubing nozzle, different sizes | FlexiDraft™ line with spout |
Safety
Micro Matic
DSI
FlexiDraft™
KeyKeg
Safety
A-SYSTEm
Flat type
CO2 outlet:
- 1/2"
- 3/4"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
Beverage outlet:
- 1/2"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
G-SYSTEm
Trilobe type
CO2 outlet:
- 1/2"
- 3/4"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
Beverage outlet:
- 1/2"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm

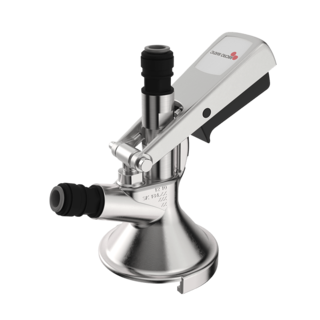

M-SYSTEM
Combi type
CO2 outlet:
- 1/2"
- 3/4"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
Beverage outlet:
- 1/2"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm

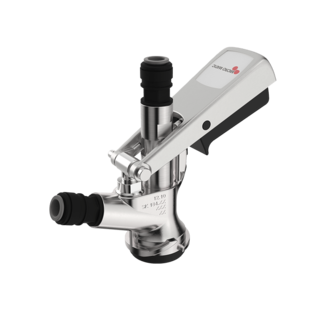

S-SYSTEm
Well type
CO2 outlet:
- 1/2"
- 3/4"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
Beverage outlet:
- 1/2"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm

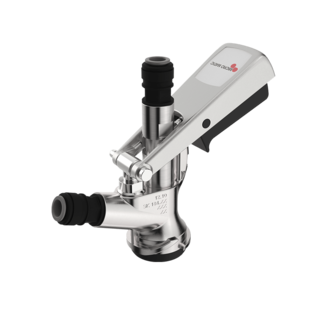

D-SYSTEM
Well type
CO2 outlet:
- 1/2"
- 3/4"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
Beverage outlet:
- 1/2"
- 5/8"
- 8, 10, 3/8" push fittings
- Tail pipe, Ø 4.2, 5.2....11.2 mm
MICRO MATIC
design

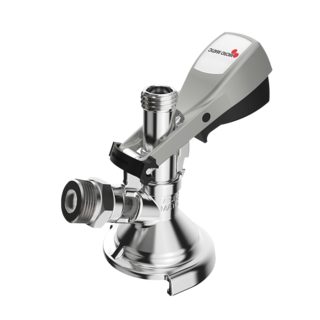

A-SYSTEm
Flat type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male

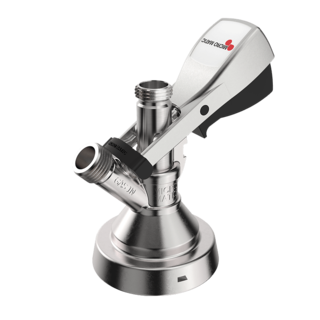

G-SYSTEm
Trilobe type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male

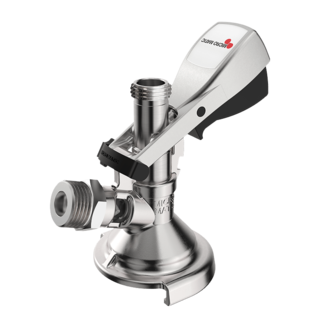

M-SYSTEM
Combi type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male

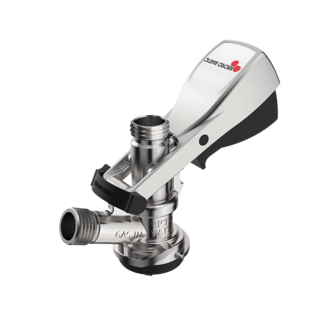

S-SYSTEm
Well type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male

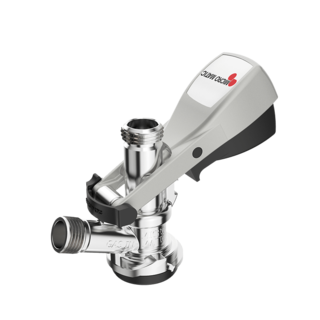

D-SYSTEM
Well type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male
L-SYSTEm
Flat type
CO2 outlet:
- 1/2" BSP Male
- 5/8" BSP Male
- 7/16" UNF Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male

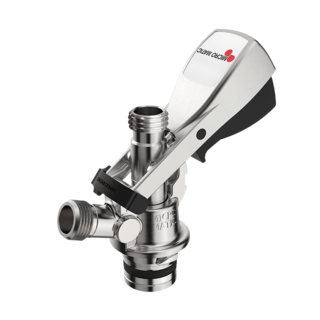

U-SYSTEM
Well type
CO2 outlet:
- 1/2" BSP Male
- 3/4" BSP Male
- 3/8" BSP Female
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male
DSI
design

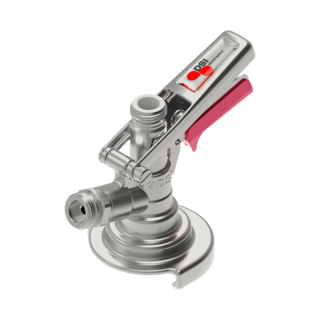

A-system
Flat system
- Also available with welded side outlet on the piston (G1/2 or G5/8) for space-saving under-counter tapping.
- Also available with combi-seal.
G-system
Trilobe system
- Also available with welded side outlet on the piston (G1/2 or G5/8) for space-saving under-counter tapping.
- Also available with combi-seal.

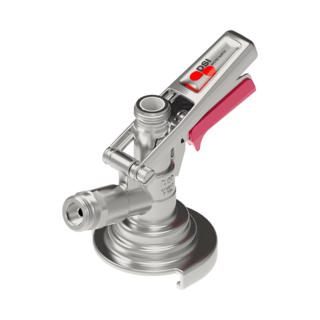

M-system
Combi system
- Also available with welded side outlet on the piston (G1/2 or G5/8) for space-saving under-counter tapping.

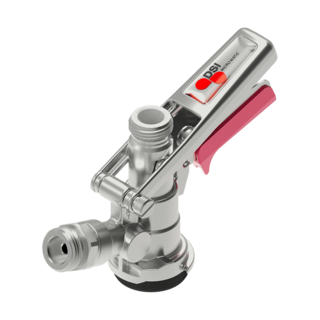

S-system
Well system
- Also available with welded side outlet on the piston (G1/2 or G5/8) for space-saving under-counter tapping.
- Especially for this S-type, a decompression valve with pull ring located on the side of the gas inlet and set to 4.15 bar / 60 psi is also an option.
D-system
Draft system
- Also available with welded side outlet on the piston (G1/2 or G5/8) for space-saving under-counter tapping.
- Especially for this S-type, a decompression valve with pull ring located on the side of the gas inlet and set to 4.15 bar / 60 psi is also an option.

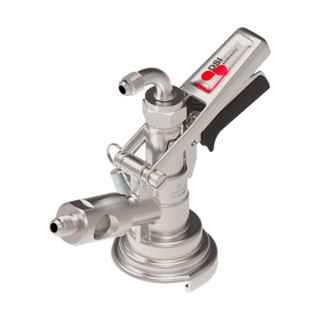

L-system
Soft drink system
Variant:
- Flange Ø 60 mm = other types (non-Coke)
- Flange Ø 58 mm = Pepsi Cola
- Flange Ø 56 mm = Coca Cola
Includes beverage NRV torpedo, stainless steel housing, safety valve (7 bar), two lip valves, CO2 connection: 1/2" x 16 BSF AG 7/16” x 20 UNF AG. Only an example of a basic variant is shown here. Contact us for additional options.

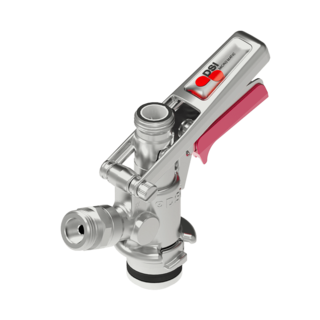

U-system
UEC system
- Also available with welded side outlet at the piston (G1/2 or G5/8) for space-saving under-counter tapping.
FlexiDraft™

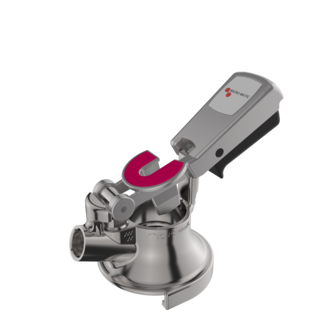

A-SYSTEm
3/8" push-in connection
G-SYSTEm
3/8" push-in connection
M-SYSTEM
3/8" push-in connection

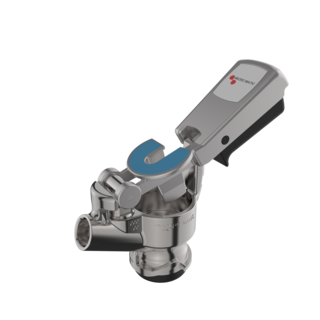

S-SYSTEm
3/8" push-in connection

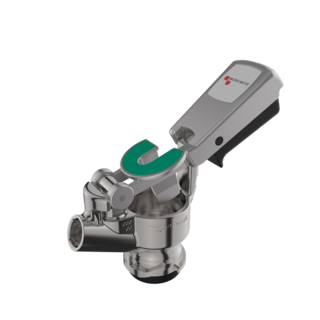

D-SYSTEM
3/8" push-in connection

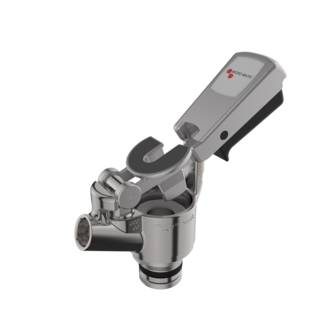

U-SYSTEM
3/8" push-in connection

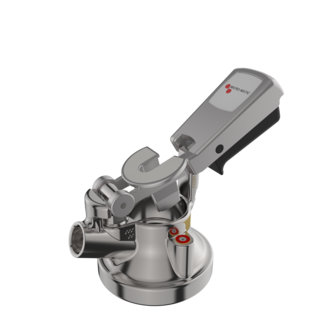

Keykeg-SYSTEM
3/8" push-in connection
KeyKeg

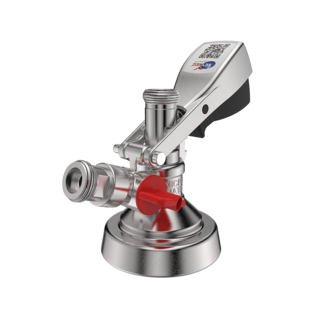

MICRO MATIC KEYKEG-SYSTEM
Trilobe Type
Advanced functionallity and innovative degassing feature
CO2 outlet:
- 1/2" BSP Male
- 5/8" BSP Male
Beverage outlet:
- 1/2" BSP Male
- 5/8" BSP Male
DSI KeyKeg-system
KeyKeg system
New 2022 generation features a lower height and improved stroke to open the KeyKeg, and is now always equipped with the side relief valve at 4 bar.
VARIANT: NON-food (for the blue KeyKeg head with three cams) provides matching grooves in the coupler for tapping of KeyKeg NON-food kegs.
Accessories
Dispensing head attachments beer outlet
The attachments are attached to the external thread (G 5/8 or G 1/2) on the beer outlet.
Nuts:
Hexagon
Knurl
Wings
shut-off valves:
Standard
Push-in
Flare
Nozzles
Angle
Nozzles:
Straight
Curved
Rotatable
Backflow preventer:
Cages:
Balls:
Torpedo:
Standard
Gasket
Flat
Ø 12 or 10 MM
Torpedo
Dispensing head attachments gas outlet
The attachments are connected to the internal thread (G 3/8) or external thread (G 5/8 or G 1/2) on the gas outlet.
Nuts:
Hexagon
Knurl
Wings
Adapter:
Standard
Flare
Quick connector
Push-in
Double lip valve
Nozzles:
Directly on lip valve
Straight
John Guest connectors
John Guest push-fit connectors are designed for versatile performance. These fittings offer a reliable and easy-to-use solution ideal for systems requiring hygienic and durable connections.
Key benefits
- for food, drinking water applications, water treatment, air, non-flammable gases (e.g. N2 and CO2)
- Acetal copolymer (POM)
- Can be assembled without tools
- Quick, multiple disconnection possible
- Very good flow properties
