Regulators

reliable performance and optimum pressure control

The most extensive gas regulator portfolio on the market! Micro Matic offers a full selection of CO2 and Nitrogen gas regulators. A properly adjusted and functioning draft regulator is one of the keys to dispensing quality draft beer.

Primary CO2
The primary CO2 gas regulator is designed to decrease the gas cylinder’s high pressure to a lower, usable pressure for dispensing. This draft regulator can be used in a single pressure, single keg application, in a panel of primary regulators or for servicing several secondary regulators downstream.

Primary Nitrogen
The primary Nitrogen regulator is designed to decrease the gas cylinder’s high pressure to a lower, usable pressure for:

  • Mix gas (CO2-N2) for beer
  • Wine dispensing
  • Servicing a gas blender


Secondary Regulators
Secondary gas regulators reduce pressure from a primary regulator or gas blender and then this lower pressure services each individual beer keg. An application would be for a system using CO2 gas dispensing products with different carbonation levels. The primary CO2 gas regulator is set between eg. 35 - 45 PSI supplying two or more adjusted secondary draft regulators reducing individual pressures of eg. 12 and 14 PSI for the respective kegs.

QuickFit™ - The Regulator of tommorrow is here!

Modular design to create
customised solutions

Strong features:

  • Excellent pressure setting at any time

  • Stainless steel valve seat

  • Tamper evident device on adjustment screw

  • Pressure adjustment with Allen key or adjustment handle

  • Brass housing Zn/Ni plated

  • Choice of manometers

  • Choice of cylinder connections

  • Choice of outlet connections

  • Choice of wall brackets

  • Choice of manometer protection cap

  • Traceability - individual No

  • The Premium regulators can be easily extended and used as a battery for two and up to five regulators in series.

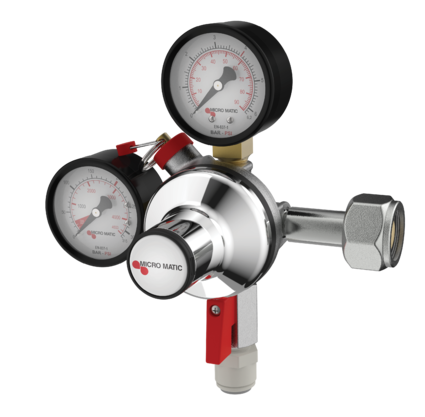

Premiumplus primary

Key features:

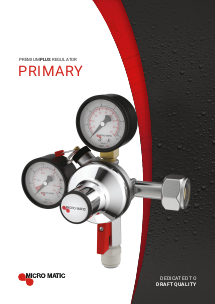

Download data sheet:

  • High performance
  • Accurate pressure control
  • Maintenance free (optional serviceable)
  • Integrated pressure relief valve
  • Stainless steel valve seat
  • Zn/Ni plated brass housings
  • SK approval (optional)
  • Individually numbered for traceability
  • Adjustment screw protected by tamper evident cap
  • Allen key adjustment (key included) or adjustment handle
  • Tamper evident ring between housing to detect unauthorized disassembly

Premiumplus secondary

Key features:

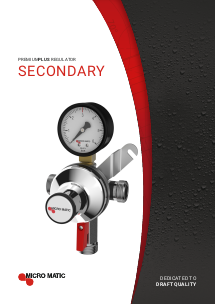

Download data sheet:

  • High performance
  • Accurate pressure control
  • Maintenance free (optional serviceable)
  • Integrated pressure relief valve (optional)
  • Stainless steel valve seat
  • Zn/Ni plated brass housings
  • SK approval (optional)
  • Individually numbered for traceability
  • Adjustment screw protected by tamper evident cap
  • Allen key adjustment (key included) or adjustment handle
  • Tamper evident ring between housing to detect unauthorized disassembly

Premium primary

Key features:

Download data sheet:

  • High performance
  • Accurate pressure control
  • Maintenance free (optional serviceable)
  • Integrated pressure relief valve
  • Zn/Ni plated brass housings
  • SK approval (optional)
  • Individually numbered for traceability
  • Tamper evident cap for adjustment handle (optional)

Premium secondary

Key features:

Download data sheet:

  • High performance

  • Accurate pressure control

  • Maintenance free (optional serviceable)

  • Integrated pressure relief valve (optional)

  • Zn/Ni plated brass housings

  • SK approval (optional)

  • Individually numbered for traceability

  • Tamper evident cap for adjustment handle (optional)

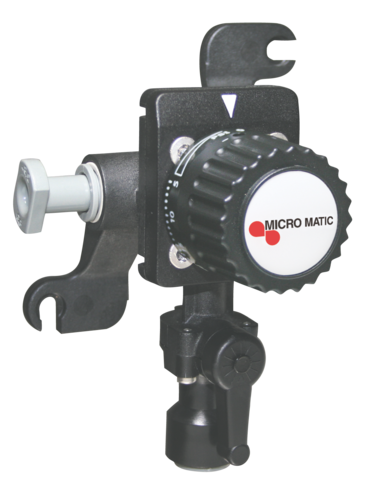

Compact secondary

Key features:

Download data sheet:

  • Low cost regulator

  • Compact design

  • High capacity

  • Easy to handle

  • Balanced regulator

  • Pull-adjust-lock movement secures the set pressure

  • Integrated wall bracket and shut-off valve (SOV)

  • Tamper evident cap for adjustment handle (optional)
