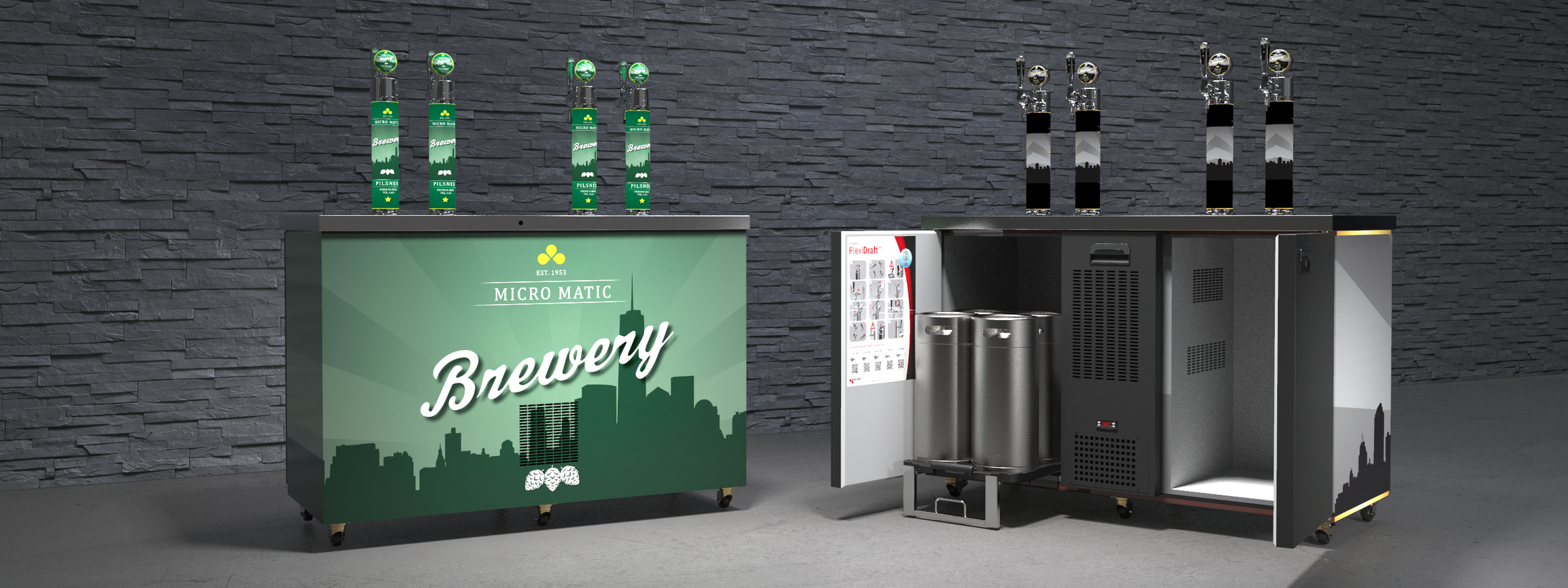

Flexidraft™ STAR 40

Product View:

The FlexiDraft™ STAR 40 fridge is developed for Micro Matic specifically to suit the FlexiDraft™ concept.

FlexiDraft™ STAR 40 is a high capacity integrated solution that combines all the benefits of the FlexiDraft™ CORE fonts with an accurate and energy efficient double chambered fridge.

​​​​​​​
Compelling design and eye-catching brand exposure

The modern design of STAR 40 - made from cleaning-friendly materials - combined with heavy duty hardware ensures years of hassle-free operation, even in the most demanding environment. For easy movement FlexiDraft™ STAR 40 is delivered with wheels with integrated brake function.

The fridge can be wrapped with your stylish design on the 3 visible sides. This gives you great opportunities to create recognizable and compelling marketing messages for your product and brand.

The FlexiDraft™ STAR 40 is easy to install (Plug & Play) and is sized to suit the use of industry standard sized 20, 30  and 50 litre kegs. ​​​​​​​FlexiDraft™ STAR 40 can be specified with 1 to 4 fonts.

Accessories

Integrated door lock

In order to prevent unauthorized access to the fridge, the FlexiDraft™ fridges can optionally be equipped with a door lock.

Interior Lighting

All FlexiDraft™ fridges can optionally be supplied with integrated LED interior lighting.

Keg Slider System​​​​​

Keg Slider System for easy handling of kegs. The keg slider system supports the below keg sizes and ensures ergonomically correct handling of kegs.

Keg options

Suitable keg Types:

20 L Slim
(Ø235 mm)

20 L EURO
(Ø408)

20 L EURO
(Stacked)

30 L DIN
(Ø381)

30 L EURO
(Ø408 mm)

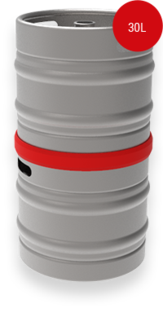

30 L EURO
(Stacked)

50 L EURO
(Ø408 mm)

50 L DIN
(Ø381)

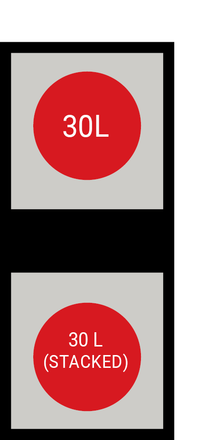

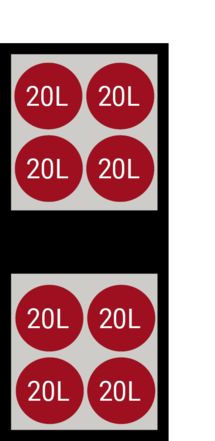

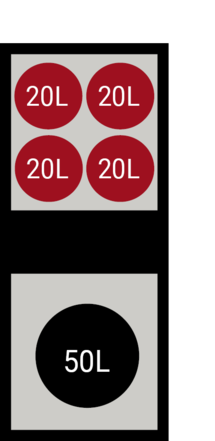

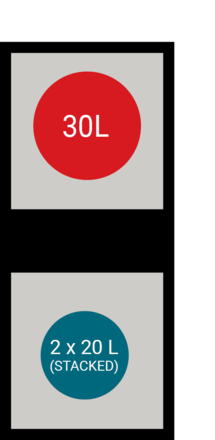

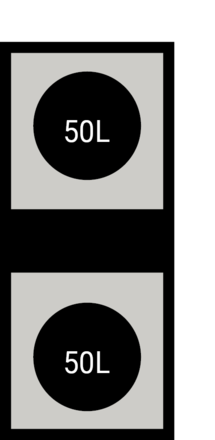

Keg Combinations (examples):

Technical specifications:


FlexiDraft STAR 40
Number of fonts2-4 fonts
Cooling:
Power of compressor

110V: 854 watt
230V: 724 watt

Coolant typeR290
Coolant amount98 g
Performance:
Ambient temperature max.40º C
Cooling temperature2º- 4º C
Electrical:
Main supply/ Run current110V - 60 Hz / 7,8A
230V - 50/60Hz / 4,2A
Plug compatability (see world standards)Type A, B, C, F, G, H, I, J, K, L, M, N, O
Energy consumption
(at 24°C ambient temp.)
5,4 kWh/24h
Noise level:
Specification48-55 db (A), 0,5 m from the cooler
Dimensions of cooler:
WidthOutside: 1520 mm
Inside: 2 x 500 mm
DepthOutside: 700 mm
Inside: 2 x 570 mm
HeightOutside (incl. wheels): 1070 mm
Inside: 858 mm
Weight150 kg
WheelsØ55 mm, h = 88 mm
Top plate:
Brand & typeFranke Stainless Steel
AISI 304 with drip tray










Design your
​​​​​​​own FlexiDraft™

WITH THE NEW FLEXIDRAFT CONFIGURATOR YOU CAN SPECIFY YOUR OWN FLEXIDRAFT ​​​​​​​AND EVEN UPLOAD YOUR OWN BRANDING FOR THE PERFECT VISUALIZATION
