Smart, Hygienic, and Leak-Tight by Design
Engineered for precision, hygiene, and 100% leak-tight performance, our shut-off valves are designed to meet the highest industry standards. Manufactured entirely in stainless steel and built on proven ball valve technology, these valves feature a gap-free, hygienic design that ensures optimal cleanliness and reliability.
Whether you're looking for simple, space-saving solutions or more advanced 3-way configurations, our shut-off valves cover a wide range of needs. From rotatable and angled designs to flexible mounting and connection options, we offer a selection tailored to your operational setup. The valves displayed here represent only a small portion of our complete range. Explore the robust functionality, certified quality, and maintenance-free operation that define our shut-off valves.
Straight
shut-off valves
Mainly used as a direct connection to the probe of the coupler, but also available with wall-mounted bracket to place it into the beverage line.
Comes in a hexagon and round design. Other connections than what is showed is possible by request.

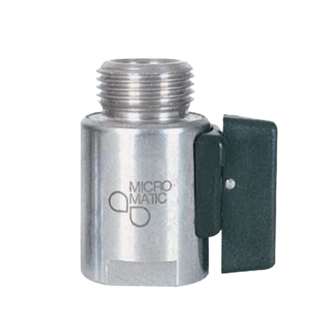

Internal - x external - thread, fix
Fixed thread connections: internal x external: e.g. available in G5/8, G1/2 o., G3/8 flare.
For connection on coupler probe.

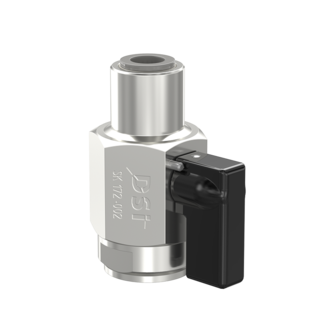

Internal thread x pushfit, fix
Fixed thread connection: internal : e.g. available in G5/8, G1/2. Integrated PushFit for Ø3/8″ hose.
For connection on coupler probe.
2x g3/8 flare, rotatable
Rotatable nut connection : G3/8 flare – internal. Outlet G3/8 flare –outside.
For connection on coupler probe.

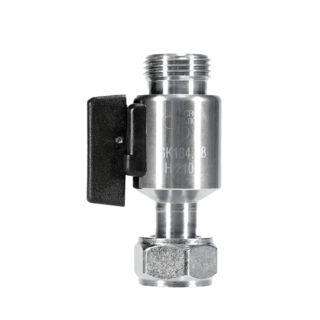

Internal - x external thread, rotatable stud
Rotatable nut connection: e.g. available in G5/8, G1/2. Outlet available in e.g. G5/8, G1/2, G3/8 flare, Ø3/8 PushFit, etc.
For connection on coupler probe.
Elbow
Shut-off valves
Direct installation on top of the Coupler to safe space and swivel the beer line around.
Comes in a hexagon and round design. Other connections than what is showed is possible by request.
90° angled
Rotatable nut connection: e.g. available in G5/8, G1/2. Outlet available e.g. in G5/8, G1/2, G3/8 flare, Ø3/8 PushFit, etc.
For connection on coupler probe, for space-saving outlet to the side and for flexible choice of line direction.

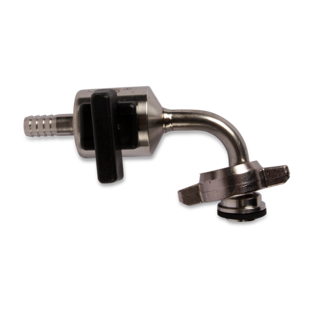

90º Angled tailpibe
Nut connection available in G3/8", 1/2 and 5/8".
Outlet connection available as tailpibe and push in with G3/8", 1/2" and 5/8".
Available in 90° angled and straight designs.
3-way
shut-off valves
3-way shut-off valves for switchen between two kegs or, for example, tje berage line and cleaning detergent or water.
Are available as manual and electric. Other connections than what is showed is possible by request.
3-way valve manually
Inlet/outlet available in G5/8, G1/2.
Optionally with wall bracket.

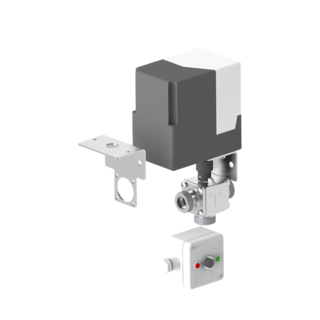

3-way valve electric
Required on site: control line (cable), 5-core = 5×0,5mm² length depending on distance on site. Power supply/source: 24 Volt ~ 50Hz.
With wall bracket and electrical push button.
Download product sheet
