A-system

keg spears
RS-AS

The Micro Matic A-system is a slide-on flat type spear with round flange design and single valve operation. The spear includes (optionally) the unique color and year coding for preventive maintenance as well as a range of optimized hygiene features to ensure the highest draft quality.

The A-system is made from high quality nickel-plated brass and a stainless steel probe, ensuring that all parts in contact with beer is made of stainless steel. Thus the risk of metallic off-taste is eliminated and your beer is served in the quality intended from the brewmaster.

Neck Types:
W2" x 14 TPI
RD 52 x 1/6"
RD 52,8 x 1/6"
2 1/8" - 7 UN


AVAILABILITY:
– Installed in new kegs
– As replacement spear


TOOLS NEEDED for installation/Servicing:

dismounting:
#941-012 Decompression Tool
#941-031 Spear Rejection/Injection Tool

Servicing:
#941-903 Spear Disassemply Bench​​​
#941-098 Gasket Mounting Cone​​​

Leak Testing:
#940-036 Leak Testing Tool​​​

Mounting:
#941-039 Spear Body Fixing Tool 1
#941-054 Spear Body Fixing Tool​​​ 2
#941-031 Spear Rejection/Injection Tool
#940-049 Adapter​​​
​​​​​​​​​​​​

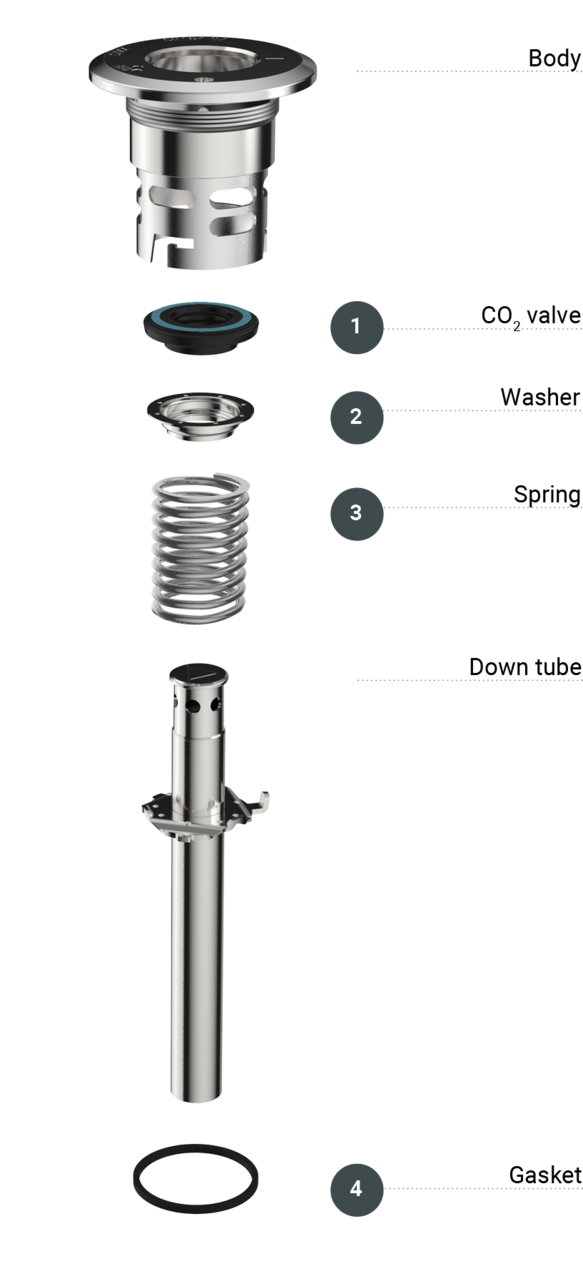

​​​​​​​​​​REPAIR PARTS:
– Micro Matic recommends replacing parts marked #1-4 at right when rebuilding this spear.
– Closely inspect all other parts listed; do not reuse if damaged or excessively worn.


Description:Item Number:
1.CO2 Valve - Color102-379
1.CO2 Valve - Black102-549
2.Washer704-302
3.Spring100-472
4.Circlip100-621




​​​​​​​Pro-Tip:
O-ring must be wet when the spear is installed.

Servicing video
RS-AS:

play

Servicing manual
RS-AS:
